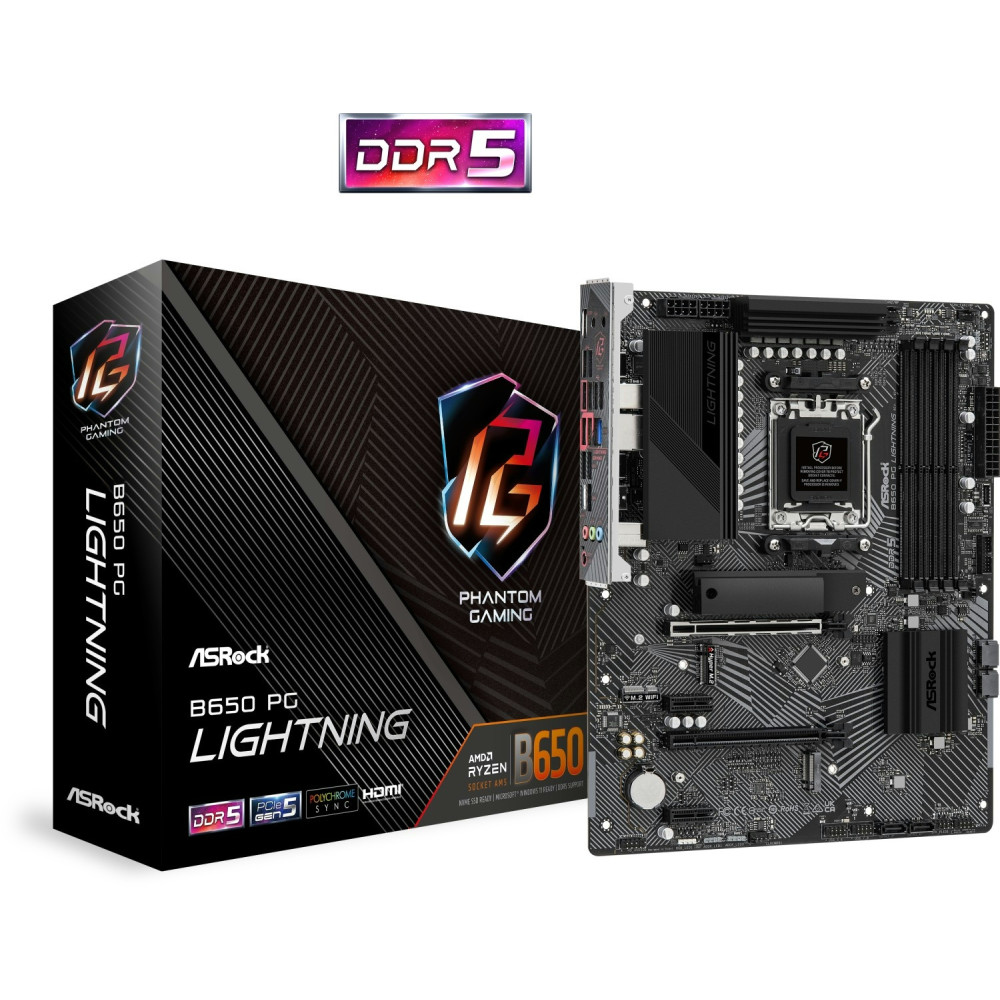

MBO-Asrock B650 PG Lightning

shape factor
ATX
Socket
AMD AM5
chipset
AMD B650
CPU-Compatibility
Ryzen 7000
RAM
4x DDR5 DIMM, dual PC5-51200U/?DDR5-6400 (OC), max. 128GB (UDIMM)
Extension slots
2x PCIe 4.0 x16 (1x x16, 1x x2), 2x PCIe 4.0 x1, 1x M.2/?M-Key (PCIe 5.0 x4, 2280), 1x M.2/?M-Key (PCIe 4.0 x4, 2280), 1x M.2/?M-Key (PCIe 4.0 x2, 2280), 1x M.2/?E-Key (PCIe, 2230)
external connectors
1x HDMI 2.1 (iGPU), 1x USB-C 3.2 (20Gb/?s), 7x USB-A 3.0 (5Gb/?s), 4x USB-A 2.0 (480Mb/?s), 1x 2.5GBase-T (Realtek RTL8125BG), 3x jack
Internal connectors
1x USB-C 3.1 Key-A Header (10Gb/?s), 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 header (480Mb/?s, 4x USB 2.0), 4x SATA 6Gb/s (B650), 1x TPM-Header, 1x Speaker-Header
Header Cooling
1x CPU fan 4-Pin, 1x CPU fan/?pump 4-Pin, 4x fan/?pump 4-Pin
Header Lighting
1x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 3x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A)
buttons/Switches
USB BIOS Flashback (external)
Audio
7.1 (Realtek ALC897)
Graphics
iGPU
Wireless
not available
RAID level
0/?1/?10 (B650)
Power connections
1x 24-Pin ATX, 2x 8-Pin EPS12V
VRM
16 virtual phases (14+2)
MOSFETs CPU
14x 60A
